Filters & Pumps

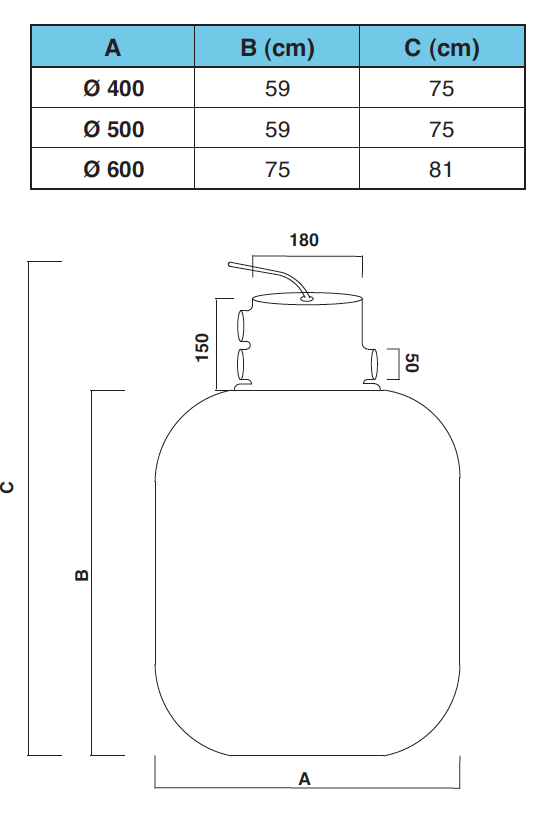

Pina Top Mounted Sand Filters



Top Valve Sand Filters made up of CTP material. Operation bar 1-1,5 , Test bar 3. Selling together with 6 way valve , manometer and air relief cock. Maximum filtration is 50 m3/sa/m2. Sand is not included to the price.





Code Diameter Sand Flow Connection Dia.
AAB18 400 mm (16") 60 kg 6 m³/h 1 1/2"
AAB19 500 mm (20") 80 kg 9 m³/h 1 1/2"
AAB20 600 mm (24") 130 kg 12 m³/h 1 1/2"
AAB75 800 mm (32") 375 kg 25 m³/h 2"
AAB76 900 mm (38") 575 kg 35 m³/h 2"

Files

Spare Parts
